Connecto Power – UK

Distribution

SKU

Socket Type

  • Type G Type G

BENEFITS

  • Practical power station which allows efficient solution for easy and immediate access to power
  • Charge and combination between them. With Built in Male & Female GST connectors
  • it can be chained to other Euficio products simply and without the need of electrician
  • can be installed almost anywhere and in variety of configurations and for multiple applications from factories
  • 3 years Warranty

More Details

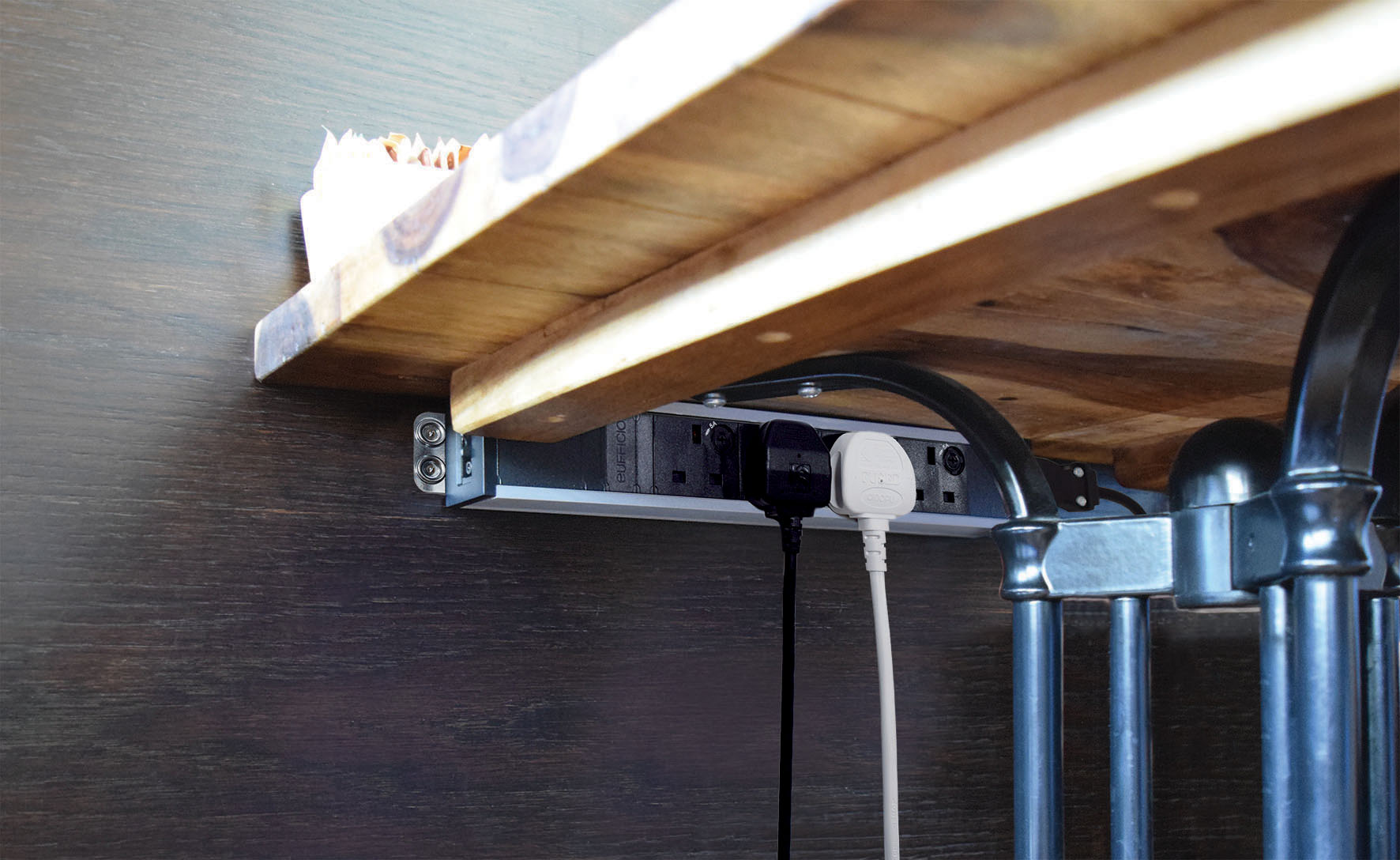

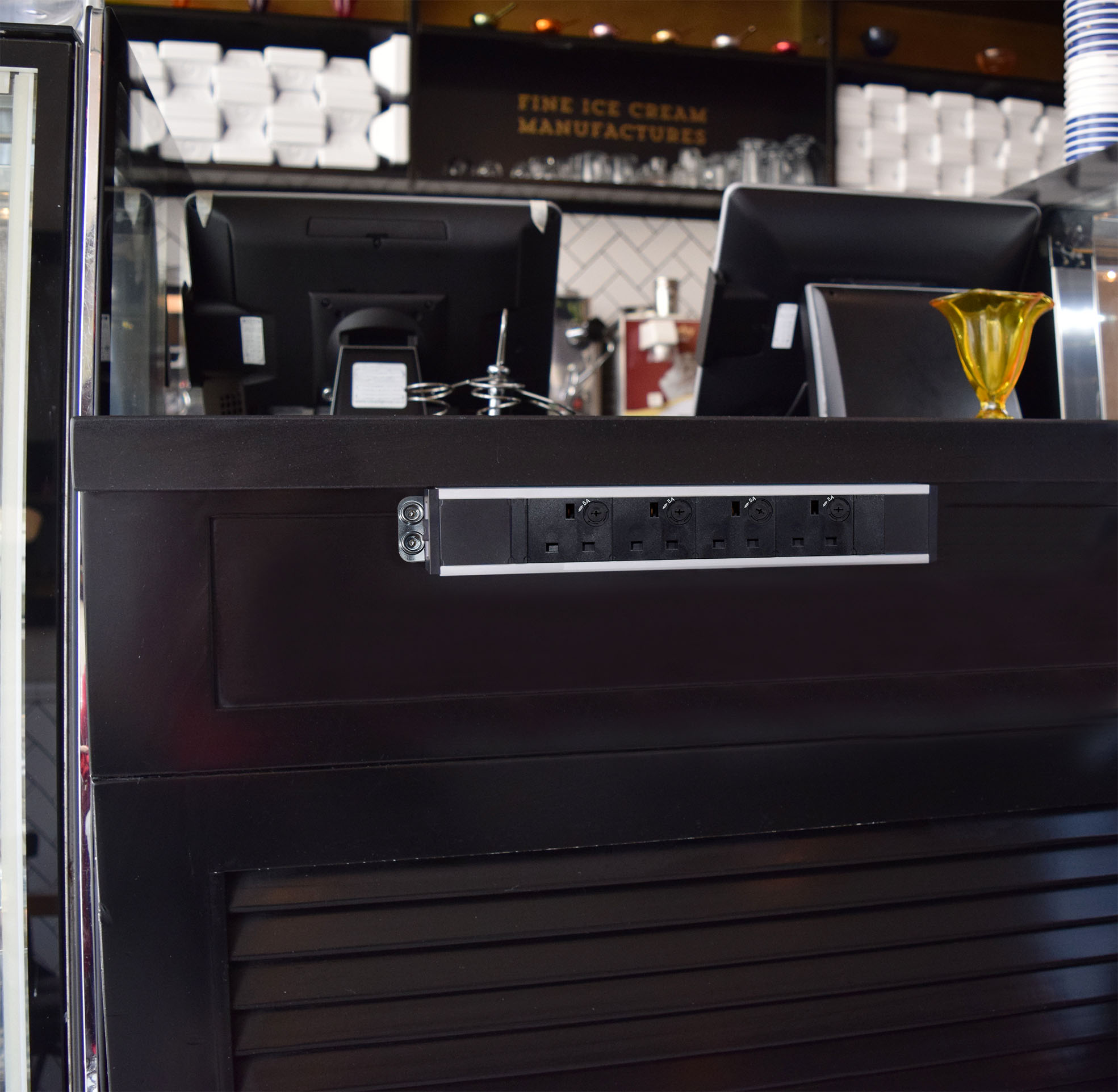

Practical power station which allows efficient solution for easy and immediate access to power ,Charge and combination between them. With Built in Male & Female GST connectors, it can be chained to other Euficio products simply and without the need of electrician. The connecto Power can be installed almost anywhere and in variety of configurations and for multiple applications from factories,warehouses,offices, labs, hospitals, convention halls ,call centres, restaurants, hotels and many more. The Connecto Power is perfect to be part of every surrounding INSTALLATION CONFIGURATIONS Under Desk /Under Table In any requirement of Hidden power station beneath the surface with very easy installation procedure. On Wall /In Wall It can be mounted on walls, whenever power stations are required with avoiding the need to make changes in the construction or to use electrician.

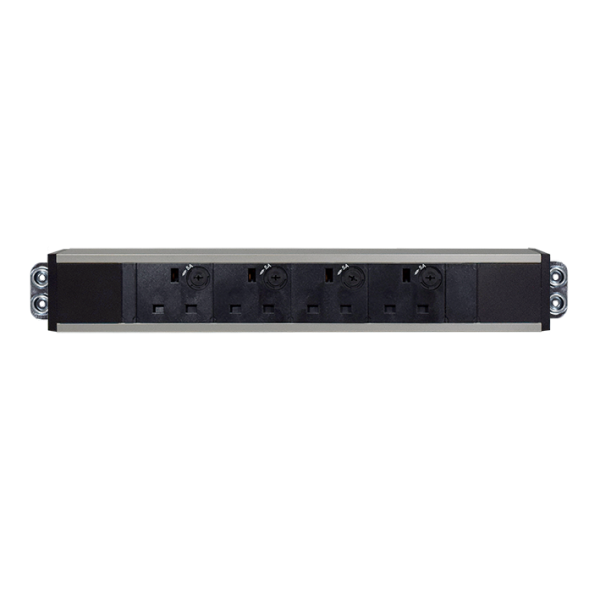

prosuct image

Power & Temperature:

Operating voltage: 230VAC 50VHz

Maximum current: 13A

Work Temperature: up to 70°C

Structure & color:

Compact, but with solid and durable structure, you will find Connecto power is reliable unit with long life expectation. Connecto power is available in Silver anodized frame - black sockets and end caps. Custom colors available on demand - minimum order will be required. Materials: cover - aluminium, sockets - PC.

Modules & combination:

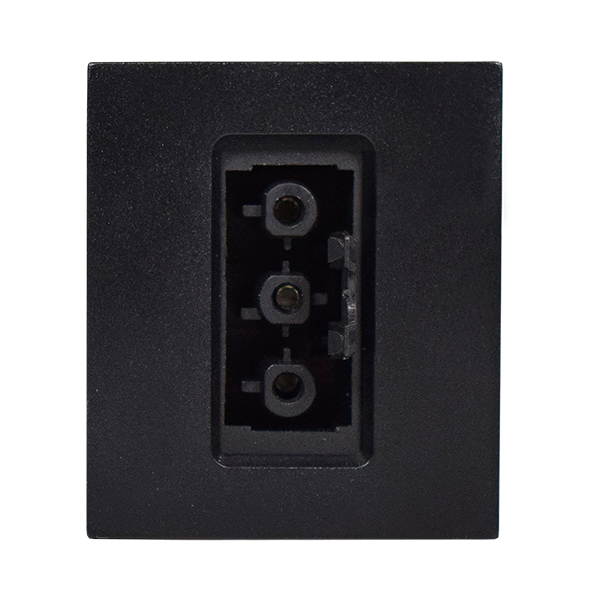

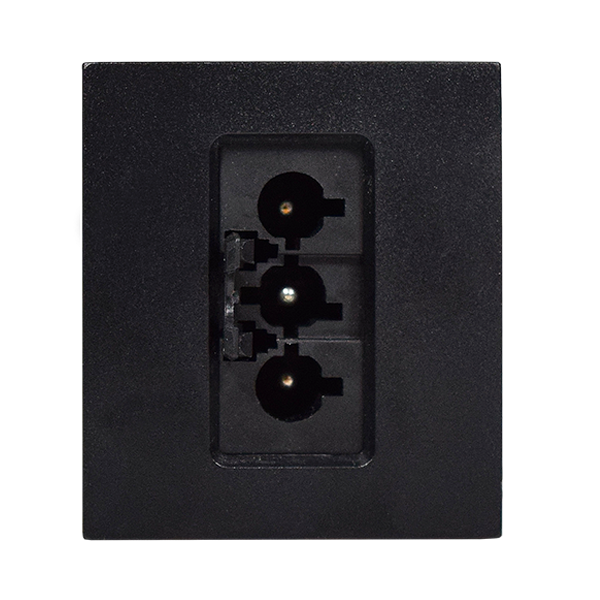

The Connecto power can be configured with power only, Charge only or combination of power, and charge. Cable and connection to power: The Connecto Power Has Built in Male GST connecter on one side and Female GST connecter on the other side. In order to connect the product to power you should buy the power cable separately.

Testing: 100% testing continuity, polarity, insulation & earth

Certifications: BS 5733, CE

Warranty: 3 years Warranty by German registered company

Installation: No Tools required, supplied with installation kit for attaching to a desired surface. Please read the installation instruction prior to installation.

Packing: each item in a box

sketches

prosuct skecth

Technical Details

Catalog NoModelDescriptionLength (L) mmWidth (W) mmHeight (H) mm
0727363256010CN-22G2 BS sockets20448.252
0727363255983CN-33G3 BS sockets24748.252
0727363255938CN-44G4 BS sockets29048.252
0727363255945CN-43CG3 BS sockets & 2.4A USB Charge29048.252
0727363255860CN-55G5 BS sockets33348.252
0727363255778CN-66G6 BS sockets37648.252
0727363255785CN-65CG5 BS sockets & 2.4A USB Charge37648.252
0727363255662CN-88G8 BS sockets46248.252
0727363255679CN-87CG7 BS sockets & 2.4A USB Charge46248.252
0727363256027CN-1010G10 BS sockets54848.252
