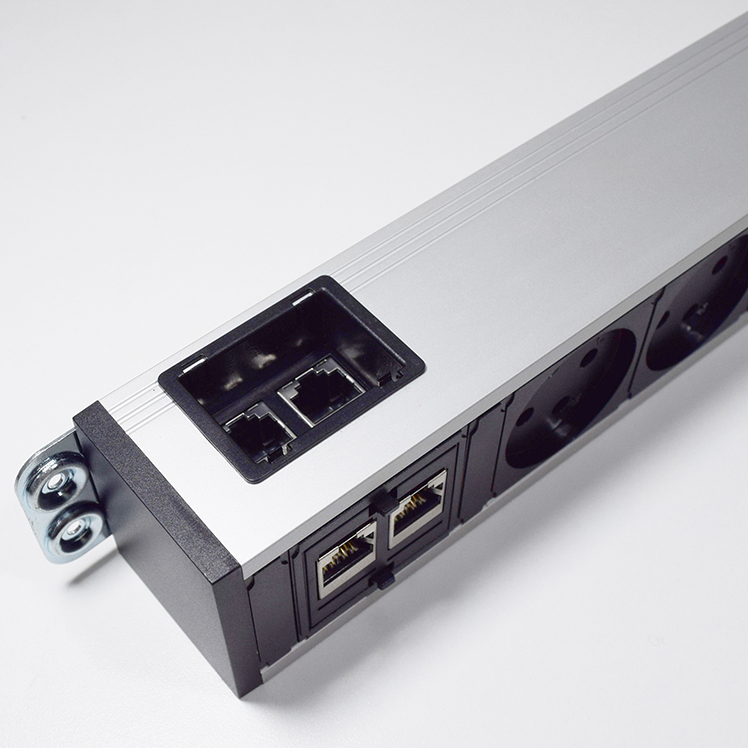

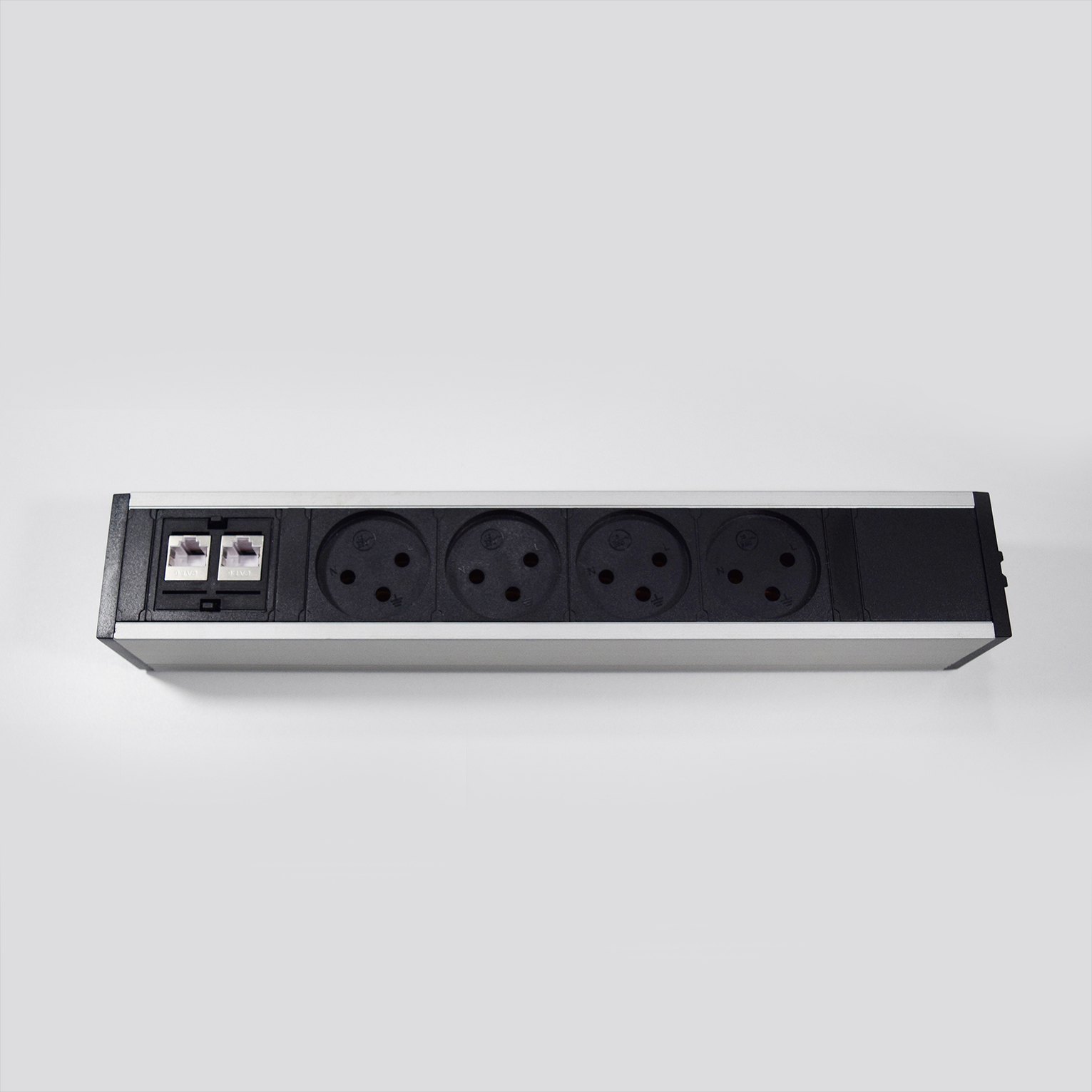

Practical power station which allows efficient solution for easy and immediate access to power, charge, data and Telecom connections with very easy installation method. With Built in Male & Female GST connectors, it can be chained to other Euficio products simply and without the need of electrician. The connecto Key can be installed almost anywhere and in variety of configurations and for multiple applications from factories, warehouses, offices, labs, hospitals, convention halls, call centres, restaurants, hotels and many more. INSTALLATION CONFIGURATIONS Under Desk /Under Table In any requirement of Hidden power and data station beneath the surface with very easy installation procedure. On Wall /In Wall it can be mounted on walls, whenever power and data stations are required with avoiding the need to make changes in the construction or to use electrician.
Power & Temperature:
Operating voltage: 230VAC 50VHz
Maximum current: 16A
Work Temperature: up to 70°C
Structure & color: Compact, but with solid and durable structure, you will find Connecto Key is reliable unit with long life expectation. Connecto Key is available in Silver anodized frame - black sockets and end caps. Custom colors available on demand – minimum order will be requiered.
Materials: cover - aluminium, sockets - PC.
Modules & combination: The Connecto Key can be configured with power, Charge, Data, communication and more.

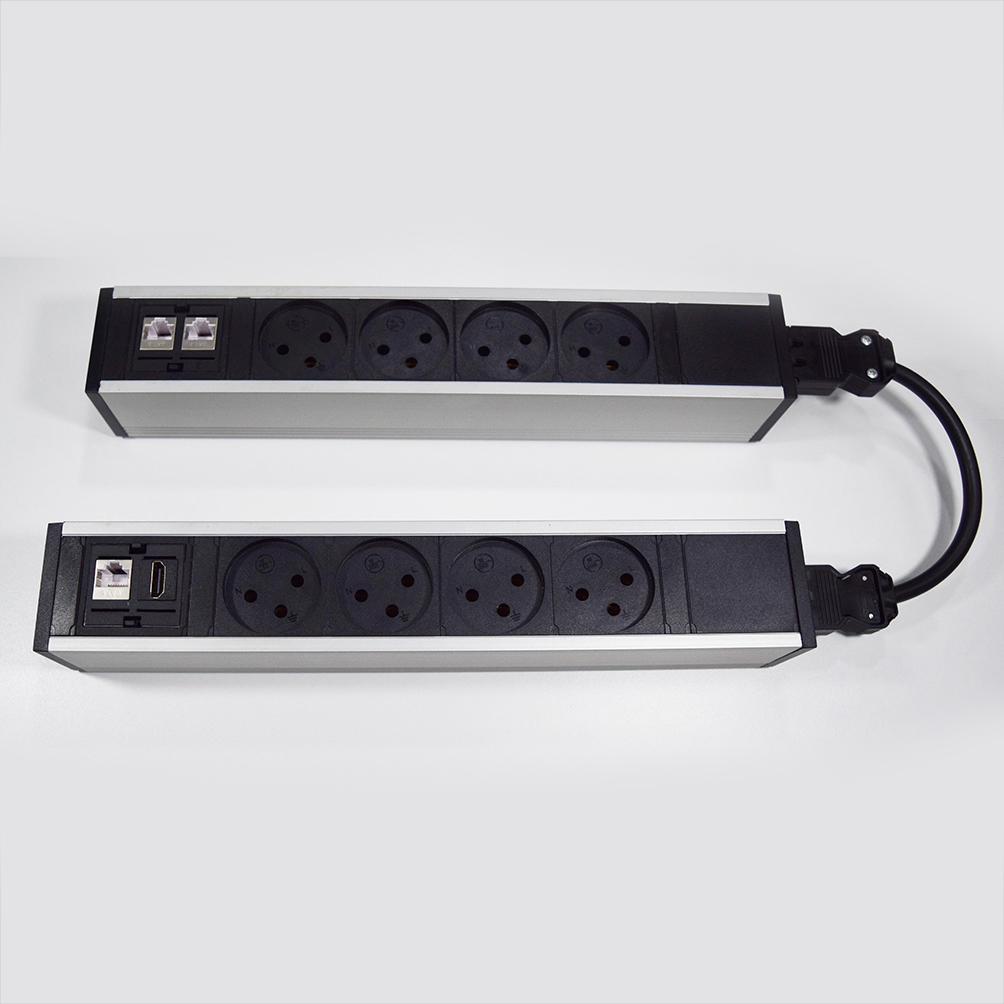

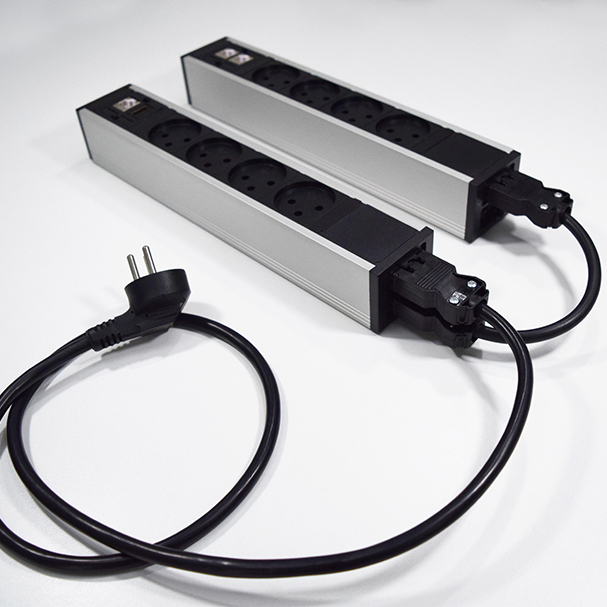

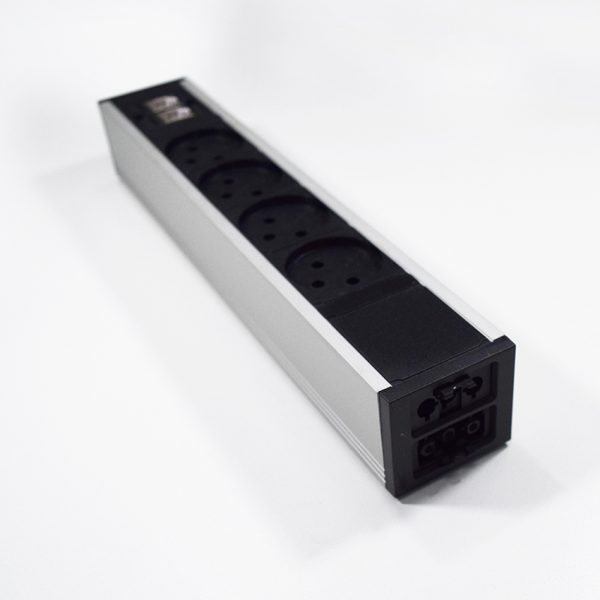

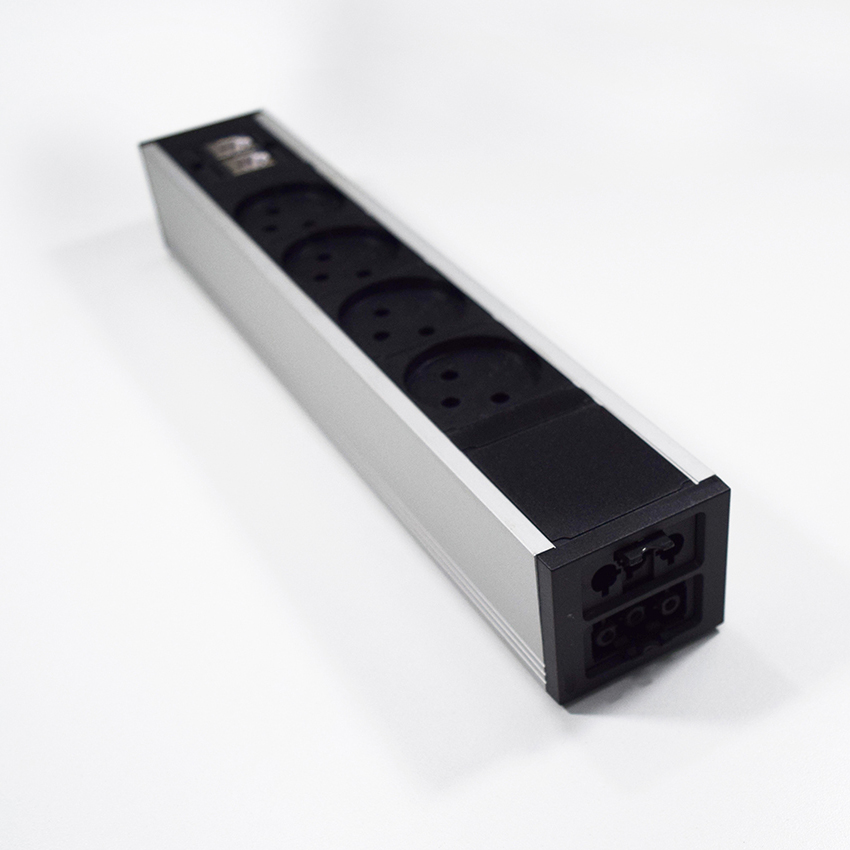

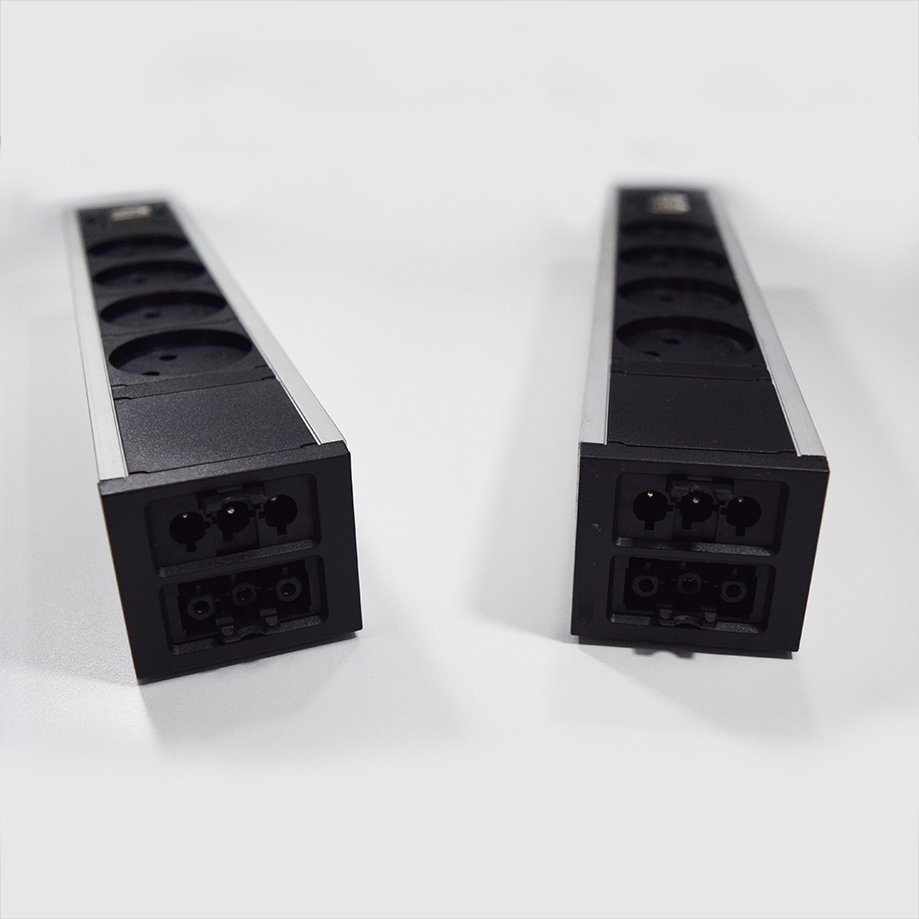

Connection to power: The Connecto Key Has Built in Male GST connecter and Female GST connecter on the same side. In order to connect the product to power you should buy the power cable separately.
Testing: 100% testing continuity, polarity, insulation & earth
Certification: SII test certification
Warranty: 3 years Warranty by German registered company

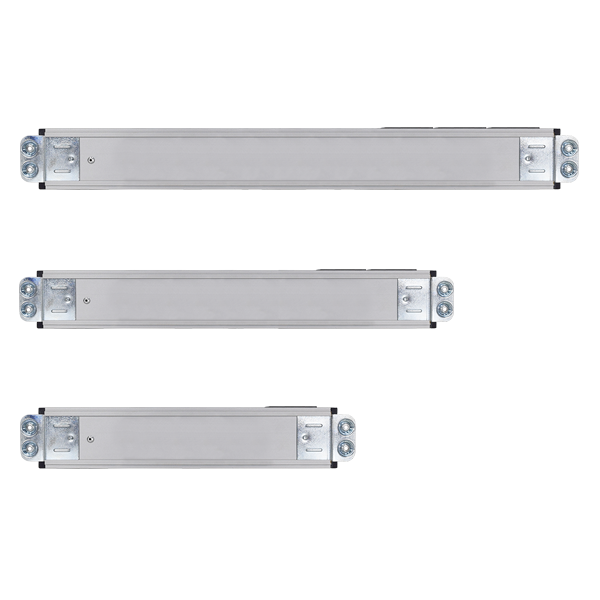

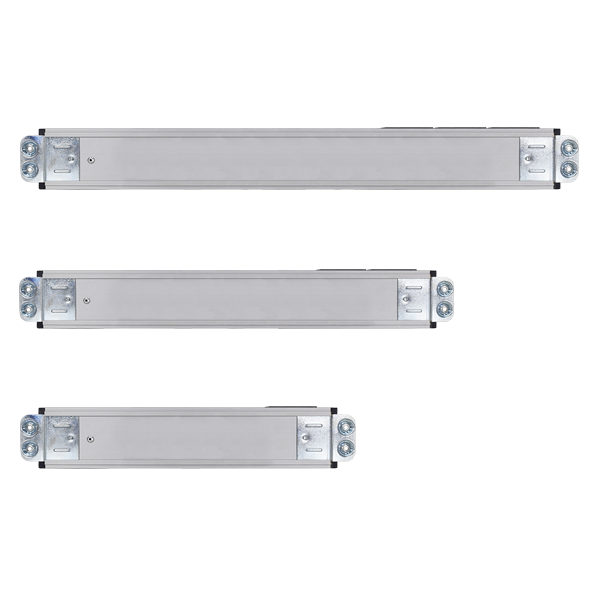

Installation: No Tools required, supplied with installation kit for attaching to a desired surface. Please read the installation instruction prior to installation.
Packing: each item in a box

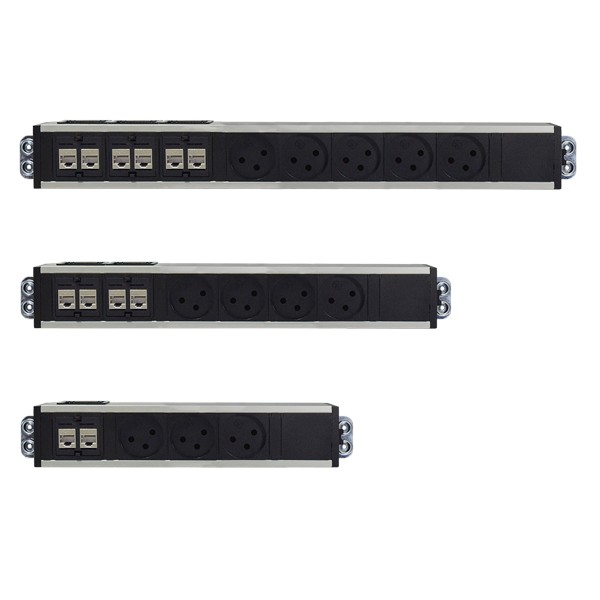

| Catalog No | Model | Description | Length (L) mm | Width (W) mm | Height (H) mm |
| 0769978898711 | CN-43 | 3 IL sockets & 2 keystones | 261 | 48.2 | 52 |
| 0769978898742 | CN-54 | 4 IL sockets & 2 keystones | 304 | 48.2 | 52 |
| 0769978898759 | CN-53 | 3 IL sockets & 4 keystones | 304 | 48.2 | 52 |
| 0769978898780 | CN-65 | 5 IL sockets & 2 keystones | 347 | 48.2 | 52 |
| 0769978898797 | CN-64 | 4 IL sockets & 4 keystones | 347 | 48.2 | 52 |
| 0769978898834 | CN-87 | 7 IL sockets & 2 keystones | 430 | 48.2 | 52 |
| 0769978898841 | CN-86 | 6 IL sockets & 4 keystones | 430 | 48.2 | 52 |
| 0769978898858 | CN-85 | 5 IL sockets & 6 keystones | 430 | 48.2 | 52 |
| 0769978898902 | CN-1008 | 8 IL sockets & 4 keystones | 516 | 48.2 | 52 |
